Description

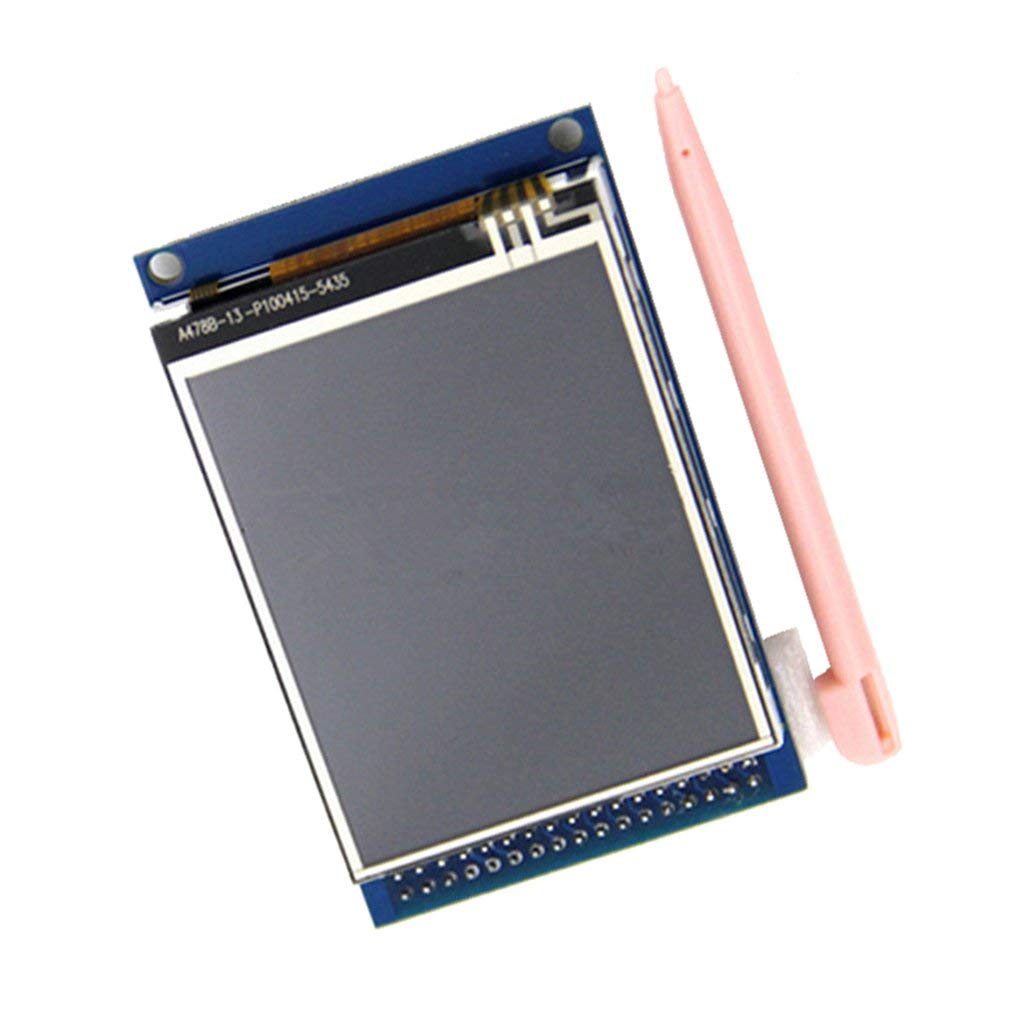

This is TFT touchscreen LCD display which is used to interface with arduino and can show image.
Specification:
– LCD size: 2.8 inches
– Driver IC: ILI9341
– Resolution: 320*240 (RGB)
– Color depth: 16 bits (65K colors)
– Operating voltage: 3.3V or 5V
– Backlight voltage: 2.8~3.3V, high bright 4LED
– Power Dissipation: 60~70(mA)
– Touch screen type: resistive, glass touch screen
– Interface mode: 16-bit (default)/8-bit configurable
– Module size: 51mm*82.6mm
– Display area size: 57.6mm*47.2mm
