3S 12V 18650 10A BMS Charger Li-ion Lithium Battery Protection Board COM32

Fr5,600

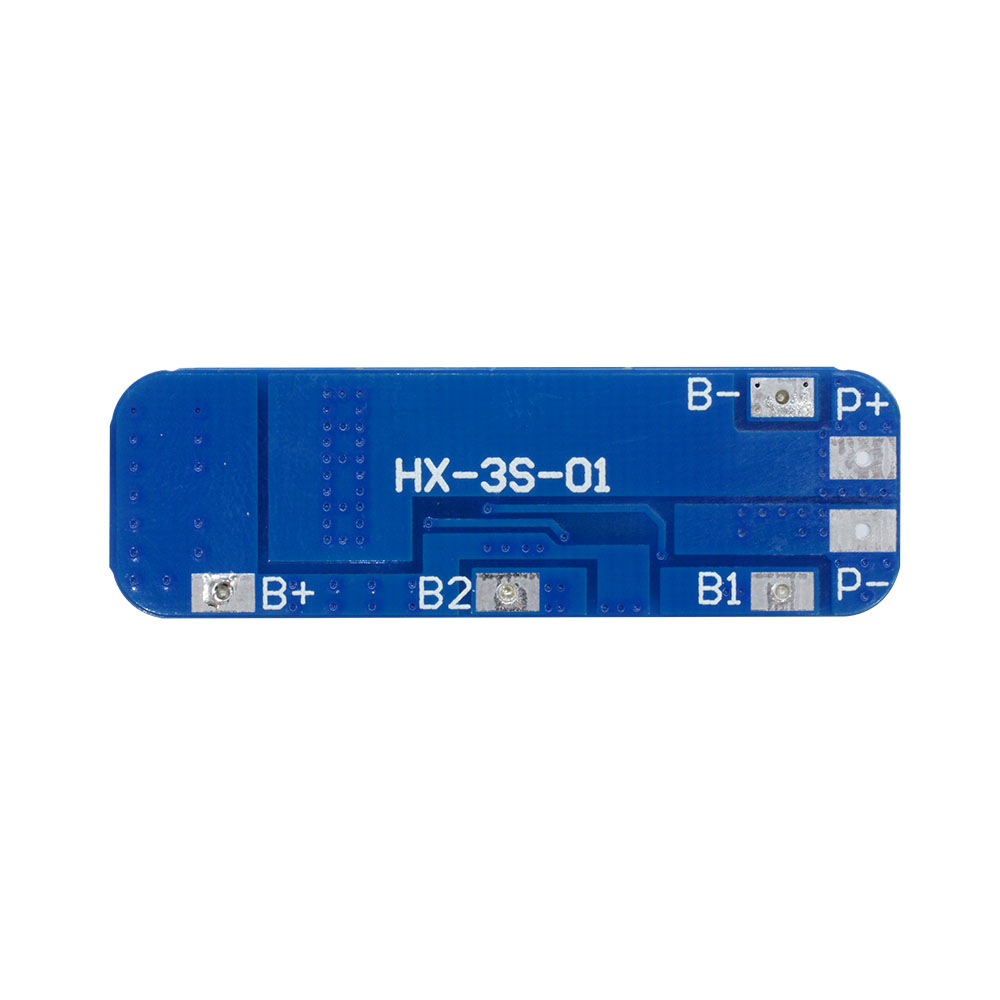

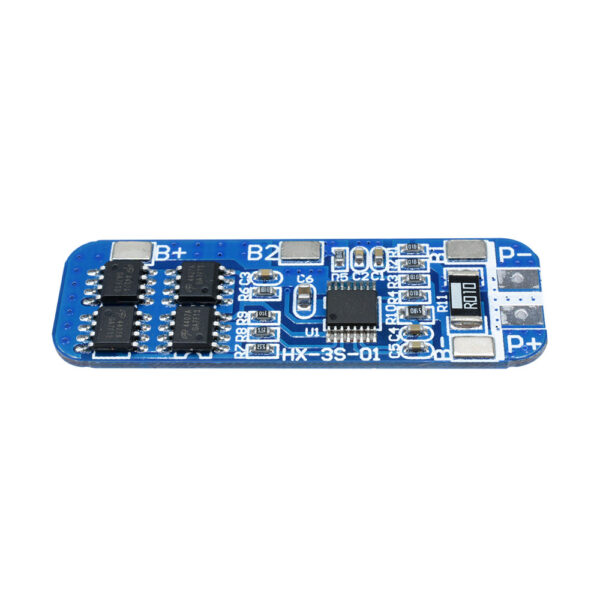

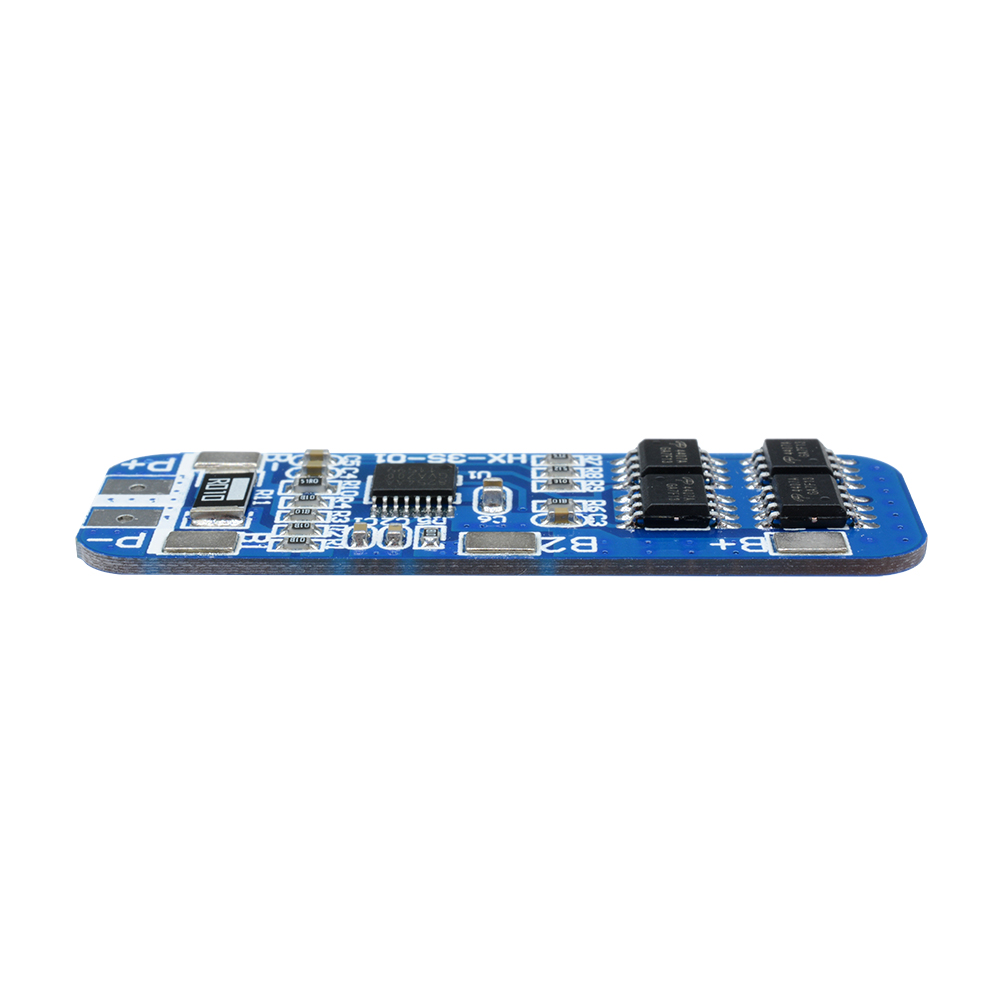

the board (module) HX-3S-01 based on the chip (controller) S-8254A, performs the function of protecting the charge-discharge LI-ION elements of type 18650. It provides protection against overcharging, overdischarge protection, protection against short circuits. Allows you to connect three type 18650 batteries with a maximum discharge current of up to 10A.

7 in stock

SKU: 7688VAR Category:

Description

In 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module, 3S stands for 3 18650 batteries or polymer lithium battery series combination. With 10.8V rated voltage for polymer battery, 11.1V 18650 or 3.7V lithium battery rated voltage and  12.6V lithium battery can be charged. And discharge 10A (referring to the maximum discharge current limit) Lithium battery protection board it also Comes with over-charge, over-discharge, over-current, short circuit protection

formula expansion :

1C battery expansion, 2000 capacity is equal to 2AH * 1 = 2A upper limit of current.
3C battery expansion, 2000 capacity equal to 2AH * 3 = 6A upper operating current.

If the battery get heat, does not apply that battery, such situation cannot be long-term use, the battery will soon be damaged.

Notes

1: strictly according to the drawing wiring 0 V (B), 3.7 V (B1), 7.4 V (B2), 11.1 V (B +), not intentionally short circuit!
2: Once you have charged the first line, it will have output.
3:When the battery in series 3, please ensure that the voltage of each battery is the same, if not the same, please fill in each set of batteries and then use… When the discharge is tested, the battery in which the voltage drop is the fastest is the difference between the battery and the battery.

Warning:

The protection board can not be used for lithium iron phosphate batteries, lamphernia, hand drill battery, electric battery fish, electric bicycle battery, car battery for children, 775 (4A) motor, 1 W fish eye LED light, please pay attention customer purchase connection! The Described in terms of power for the following products: Massager rechargeable battery, LED ready light power supply, 12 V electronic products, solar street lamp battery, power backup monitor, and other products.

Connection Diagram:



      Features

  1. Over discharge voltage range : 2.3-3.0 v ± 0.05
  2. Recharge voltage range: 4.25-4.35 v ± 0.05 v
  3. Operating current : 6-8A
  4. Operating temperature : -40 to + 50 ℃
  5. Current limit : 10-13A
  6. Storage condition : -40- + 80 ℃
  7. Resting current : less than 30uA
  8. Effective lifetime : over 30,000 hours
  9. Internal resistance : less than 100mΩ
  10. Short-circuit protection: protection,
  11. Self-recovery delay.
  12. Charging Voltage: 12.6 V-13
