Description

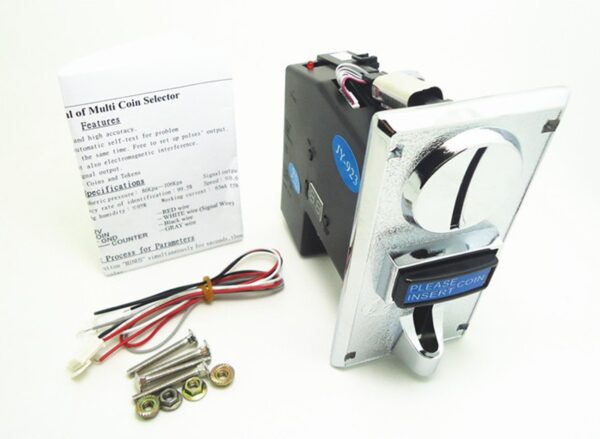

This is a multi coin Acceptor (MCA), It accepts up to 3 kinds of different coins at the same time. This type of coin selector is widely used in Vending machine, Arcade Game, Message chair, and other self–management system.The multi coin acceptor is mainly based on material, weight and size to identify coins. . The multi coin acceptor is very stable and accurate even when environment changes such as temperature, and humidity etc… In order to increase the accuracy, we suggest different version of coins use different channel to set up.

Features:
a. Capable of accepting all worldwide Coins and Tokens.
b. Intelligent CPU software control, and high accuracy .
c. Self-programming without PC.
d. Accept 1~3 different kinds of coins at the same time.
e. Free to set up pulses’ output.
f. Prevent not only electric shock but also electromagnetic interference.
g. Automatic self-test for problems.

Specifications:

• Coin diameter: 15mm~32mm
• Atmospheric pressure: 86Kpa-106Kpa
• Coin thickness: 1.2mm~3.4mm
• Working humidity: ≤95%
• Working voltage: DC +12V ±10%
• Speed: ≤0.6s
• Working current: 65mA ± 5% A
• accuracy rate of identification:99.5%
• Signal output:pulse

Note: This Multi Coin Acceptor comes with a printed copy of  setting instructions and calibration process
