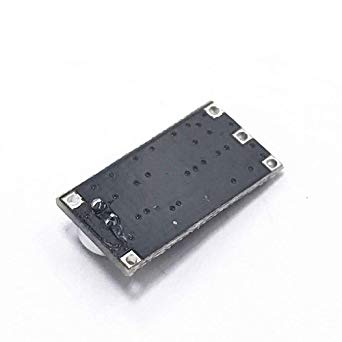

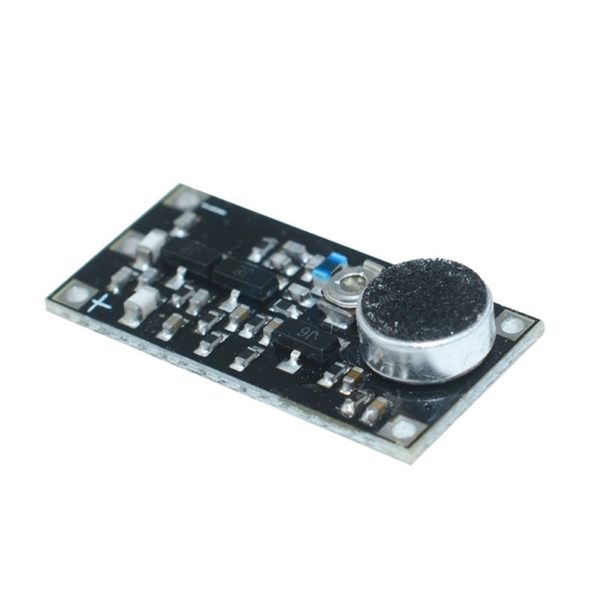

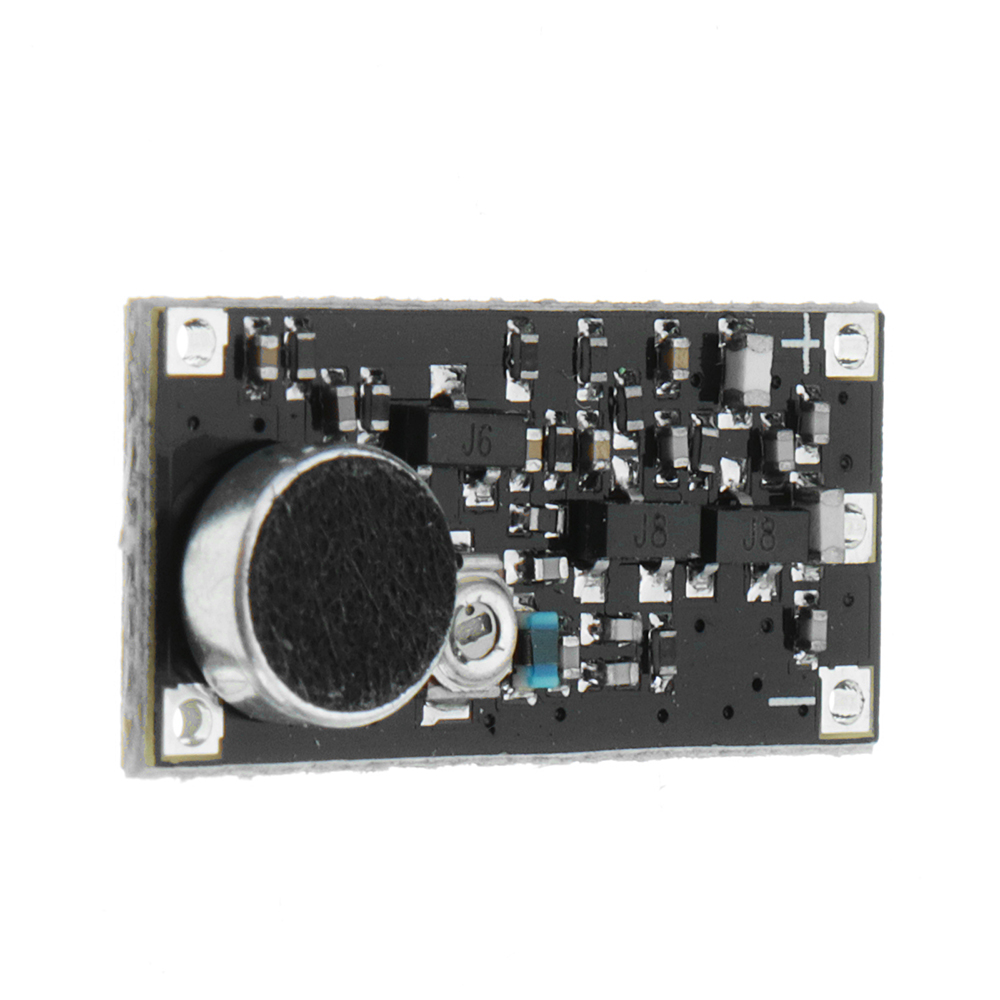

Wireless Microphone Surveillance Transmitter Module Board BRD34

Fr8,800

This is 88-115MHz FM Wireless Microphone Surveillance Transmitter Module Board For Arduino Adjustable Capacitor DC 2V,9V 9mA Voltage

5 in stock

SKU: 11163BRD Categories: ,

Description

This is 88-115MHz FM Wireless Microphone Surveillance Transmitter Module Board For Arduino Adjustable Capacitor DC 2V,9V 9mA Voltage

Specifications:

Operating Voltage: DC 2V- 9V
Current: 9mA (3V voltage
Reference distance: open ground 100 meters, 10-30 meters indoor environmental obstacles (3v voltage test, increasing the voltage from the greatly increased)
Operating frequency: 85MHZ — 115MHZ (usually between 99-101 boot default frequency)
Receive way: as long as the 88-108MHz FM radio can receive, with FM feature phones.
Frequency adjustment: adjustable capacitor
Output Impedance: 50 ohms
Size:2 cm * 1cm L*W
